Multi Head Piston Liquid Filling Machine, Liquid Bottling Machine

multi head piston filling machine,automatic liquid bottling machine,piston liquid filling machine with warranty

automatic liquid bottling machine

piston liquid filling machine with warranty

با ما تماس بگیرید

درخواست نقل قول

Multi Head Piston Liquid Filling Machine, Liquid Bottling Machine

جزئیات محصول

机器产能:

500 瓶每小时 ، 1000 瓶每小时

应用:

饮料 ، 化学品 ، 食品

包装类型:

纸盒

包装材料:

木质

自动化程度:

半自动

动力类型:

气动

فشار برق:

220 ولت/110 ولت

原产地:

گوانگدونگ، چین

品牌:

سمي

尺寸 (长 × 宽 × 高):

96 * 45 * 38mm

保修期:

核心卖点:

高精度

填充物料:

水 ، روغن ، آب میوه

灌装精度:

1 گرم

机械测试报告:

可提供

视频出厂验货:

可提供

核心组件:

电机 ، 其他

材料:

不锈钢

应用程序:

医疗

本地服务位置:

无

营销类型:

2020

类型:

灌装机

条件:

新建

适用行业:

کارگاه تعمیرات مکانیکی، استفاده خانگی، فروشگاه مواد غذایی، فروشگاه مواد غذایی و آشامیدنی

陈列室位置:

无

核心部件的保修:

重量:

48 کیلوگرم

برجسته کردن:

multi head piston filling machine,automatic liquid bottling machine,piston liquid filling machine with warranty

automatic liquid bottling machine

piston liquid filling machine with warranty

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 مجموعه

قیمت

$225-288 / set

محصولات مرتبط

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

بهترین قیمت رو بدست بیار

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

بهترین قیمت رو بدست بیار

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

بهترین قیمت رو بدست بیار

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

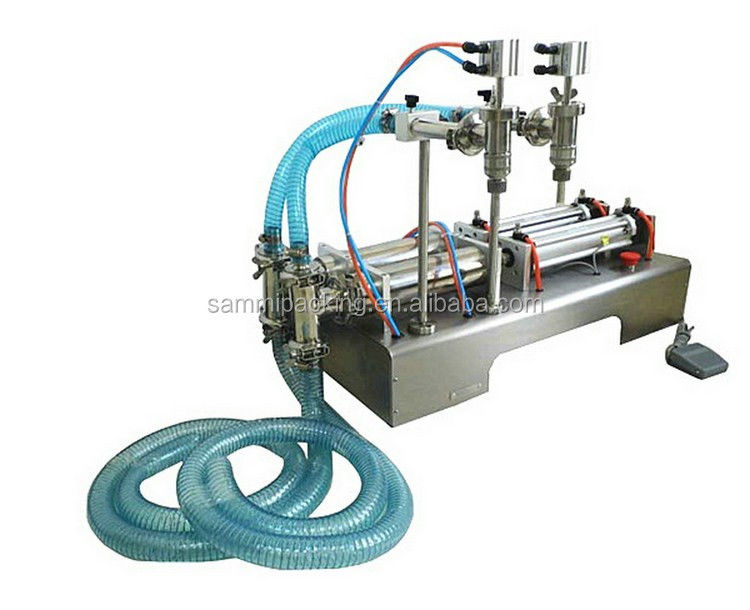

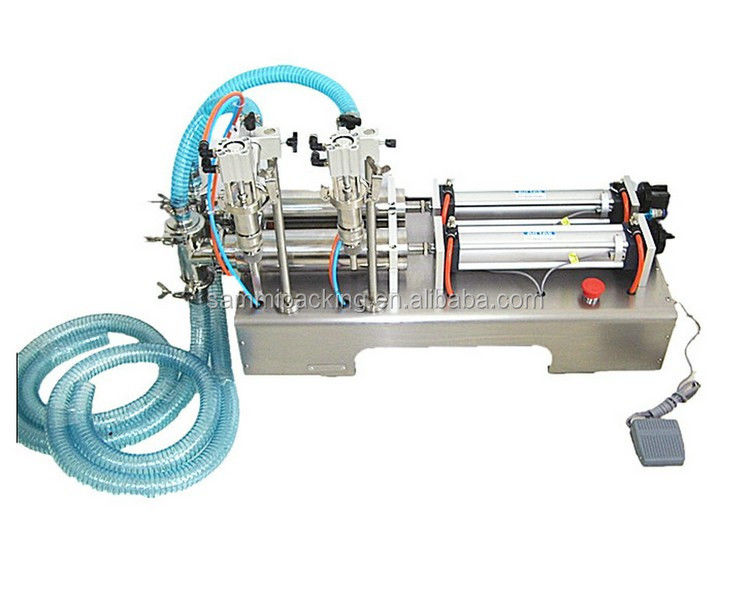

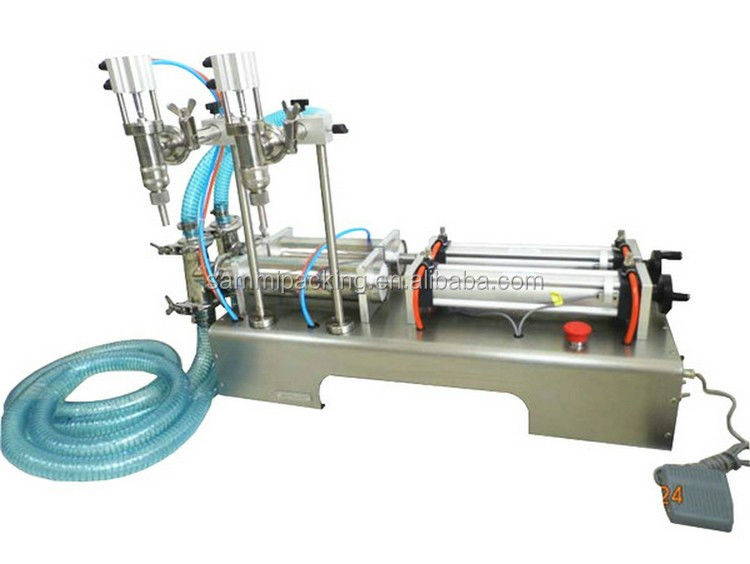

G1WY-500 Double heads Liquid Filling Machine

Features:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

GFA series of semi-automatic filling machine piston filler. Driven by a
cylinder and piston made from materials with FIVE-way valves control the flow of
materials, and magnetic reed switch control cylinder itinerary can be regulated
filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used
pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with
the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high
accuracy.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-3000	G1WYG-5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	42 Kg	45Kg	48Kg	52Kg	64 Kg	86 Kg

Machine can offer customized according to customer request
